Cross Over Press

Application
Manually operated portable transfer / fusing press suitable for a wide variety of applications.

  • Secondary pressing of seam tapes at crossover positions to create a fully waterproof seamed garment/product.

  • Application of sealing tape patches on the back of embroidered logos to prevent leakage.

  • Application of non-slip reinforced patches to marine suits - knee, elbow and seat pads.

  • Application of Promotional Transfers

The unit is equipped with a computerised system for accurate pre-selection and control of both time and temperature.

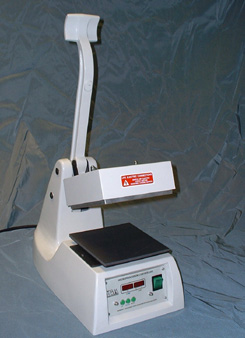

WBM Crossover Press

Specification

Platen Area 10 x 8cm ( or 8 x 6cm)
Work Area Required 28 x 47 x 73cm
Temperature Range 70 - 235oC (159 - 455oF)
Timer Range 0 - 9.59 min
Power Supply 240v AC (2A/500W)
Net Weight 19kg



Cross Over Press
WBM Crossover Press


WBM Maxi Crossover Press

WBM Maxi Crossover Press

Also available the Maxi Crossover Press for larger applications.

Specification

Fusing Area 13.5 x 9.5cm
Work Area Required 22 x 61 x 43cm
Temperature Range 70 - 235oC (159 - 455oF)
Timer Range 0 - 9.59 min
Power Supply 240v AC (2A/500W ~1.00KW)
Net Weight 11kg
